THE DETAILS
BUILT WITH PURPOSE

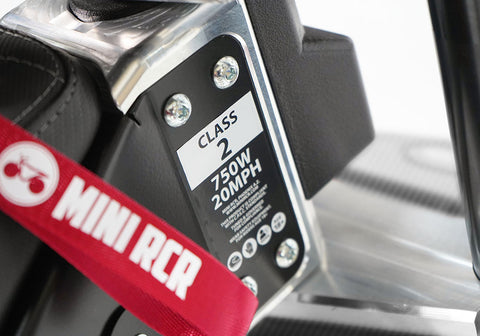

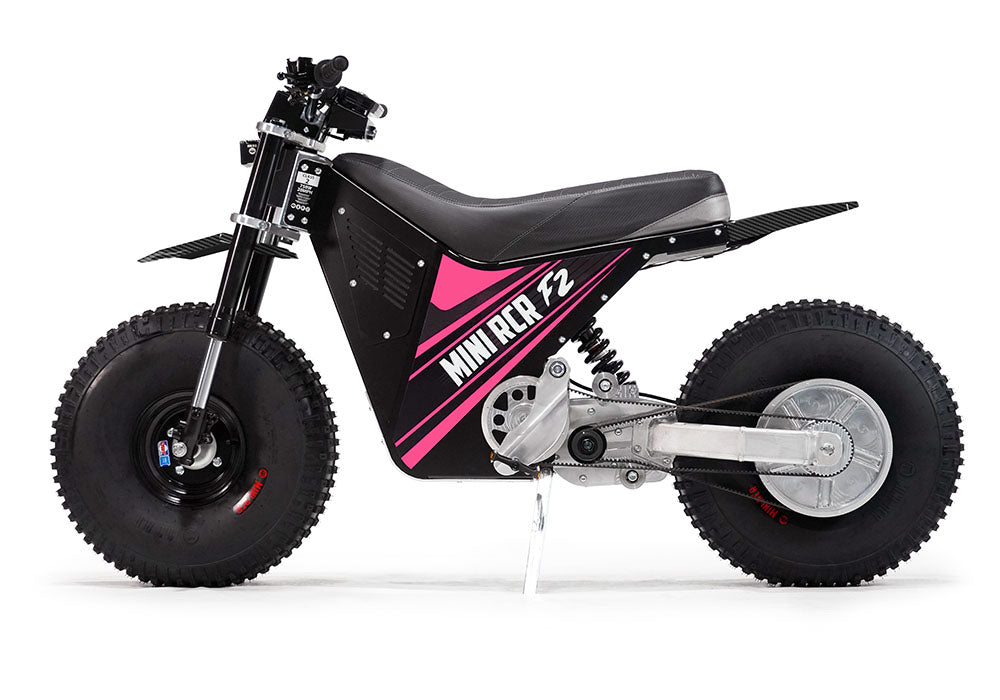

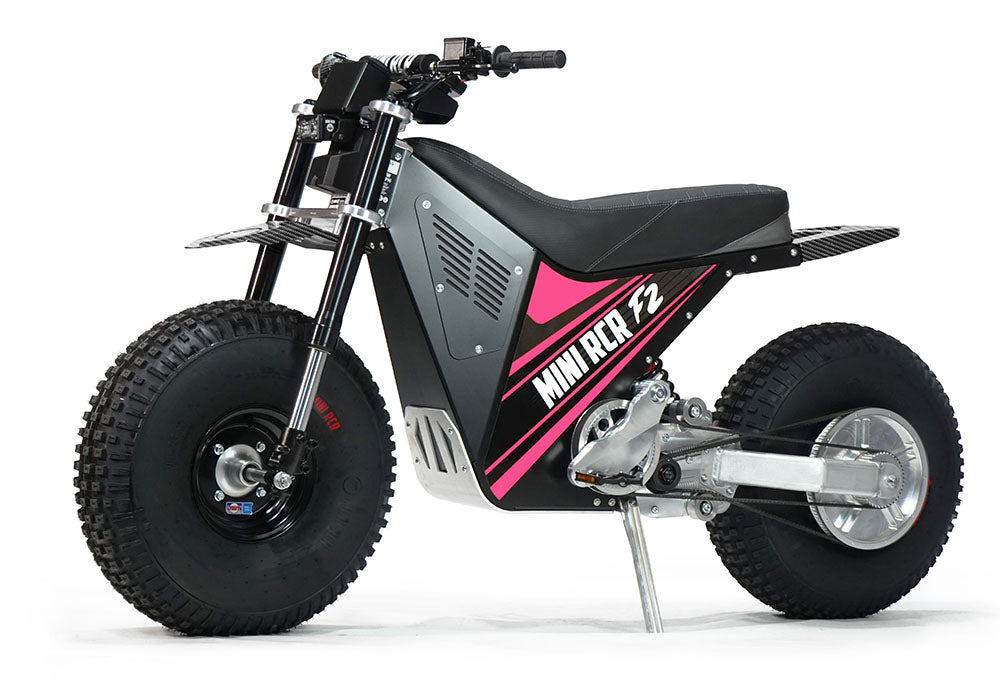

The F2 brings the stance and character of a classic fat-tire two-wheeler into a premium electric platform built for adults. Its patented belt-driven stair-step pedal system pairs a distinctive two-wheel design with electric power, with every F2 leaving Mini RCR configured as a governed Class 2 e-bike.

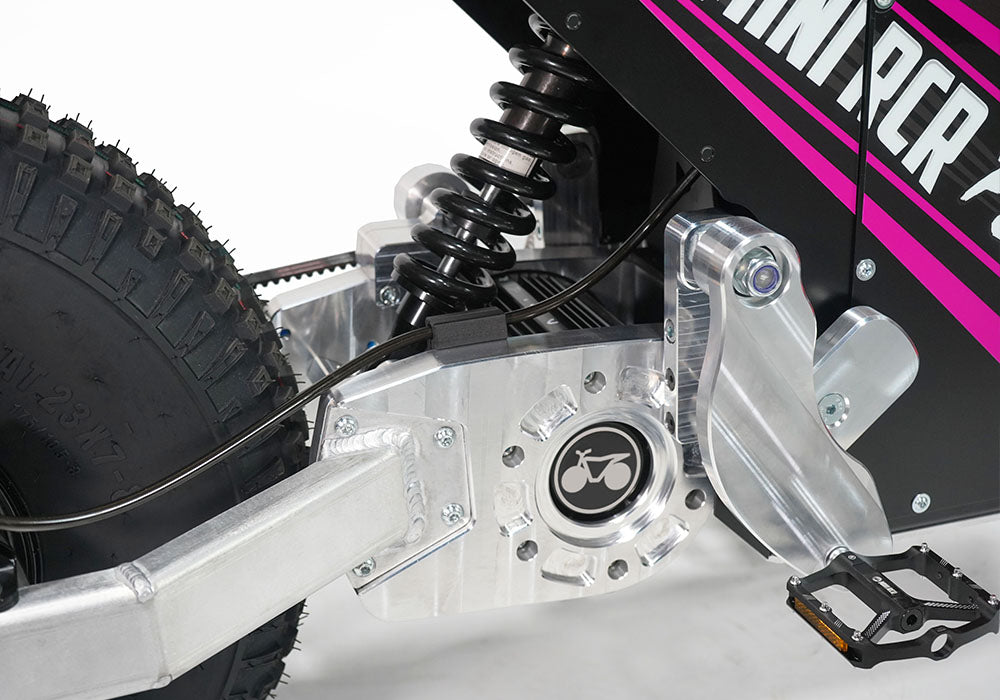

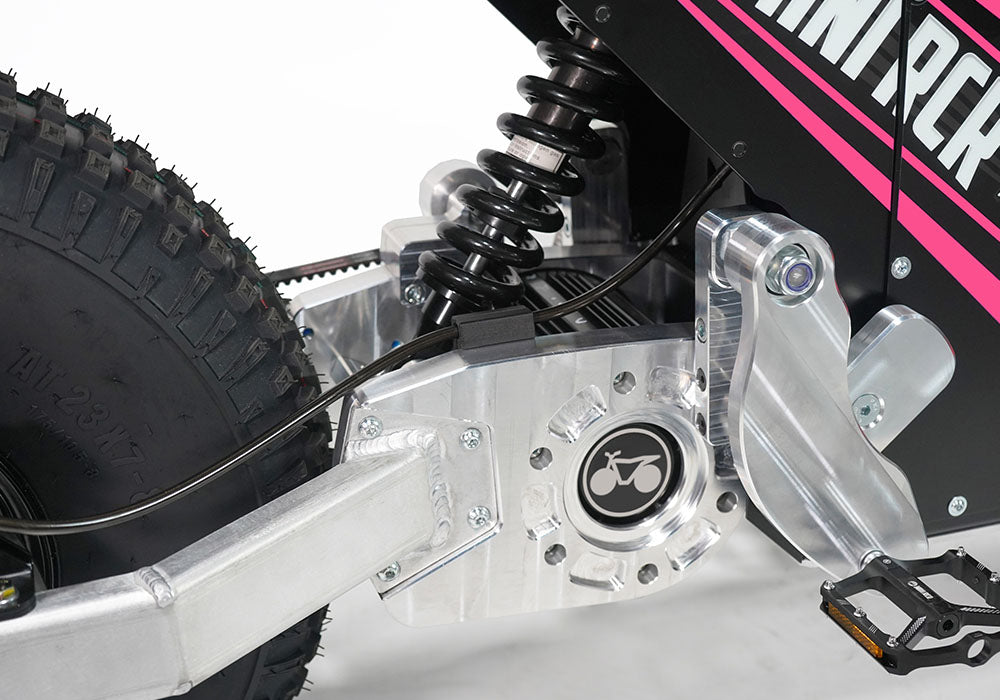

A 750-watt motor and dual-belt drivetrain deliver power to the rear wheel. A boxed steel-and-aluminum frame, billet aluminum components, long-travel adjustable suspension, LED lighting, and an onboard digital display give the F2 the solid, engineered feel expected from a serious machine.
The frame, bodywork, seat, and most suspension components are made in Phoenix, Arizona. The motor, battery, and controller are sourced overseas.
STANDARD EQUIPMENT
- 750-watt electric motor
- Patented belt-driven pedal system
- Belt-driven rear wheel
- Boxed steel-and-aluminum chassis
- Billet aluminum pedals and swing arms
- Long-travel adjustable suspension
- LED forward lighting and digital display
- Douglas wheels with all-terrain tires
Current estimated production lead time: approximately 15 days before shipment or pickup. Web orders receive production priority.
Rider requirements: adults 18+ only. Maximum rider weight: 250 lb. Always wear appropriate protective equipment and confirm local Class 2 e-bike rules before riding.
4 HR RUNTIME
72V 36AH
RIDE TUNES
User Selectable
POWERFUL
Tuned Motor
QUIET
Belt Drive System
DURABLE
Billet & Steel

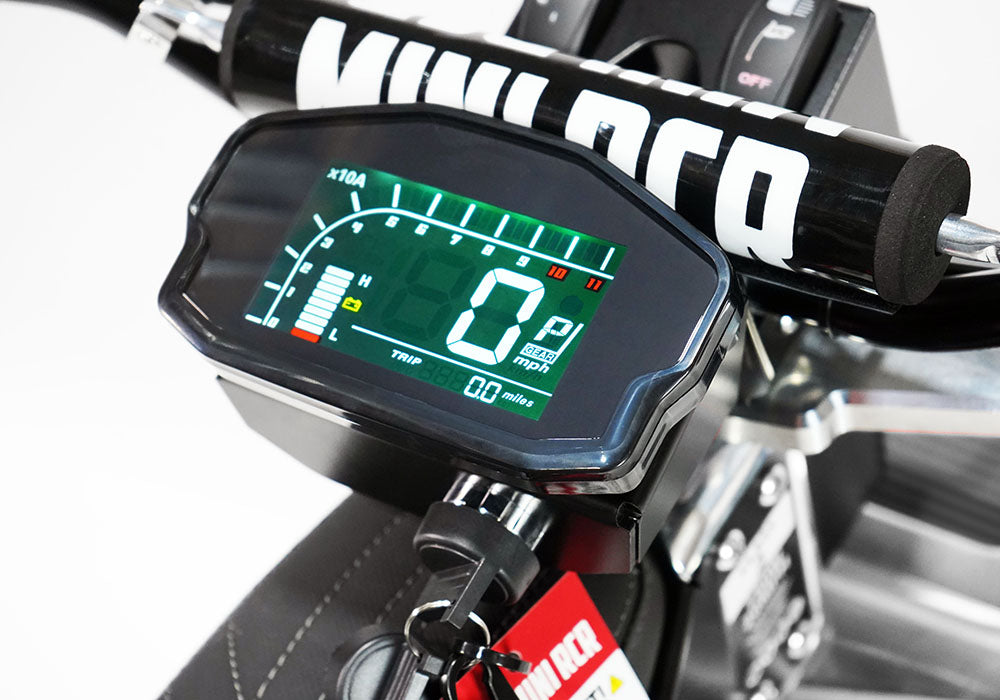

LED DISPLAY
Control Center
FAST CHARGE
Charger Included
CUSTOMIZE
Accessories

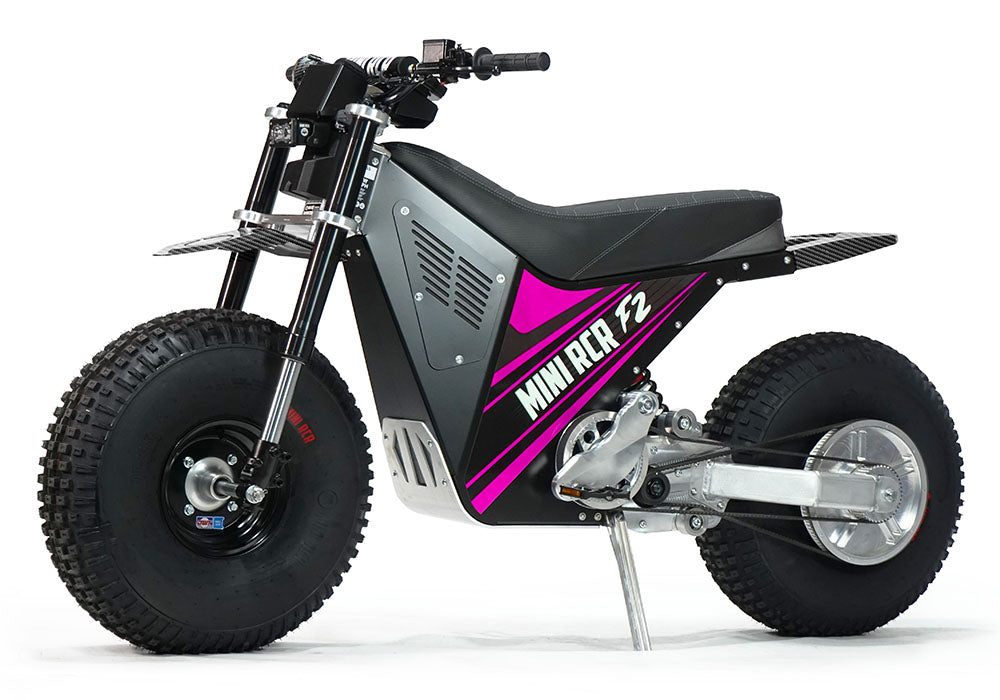

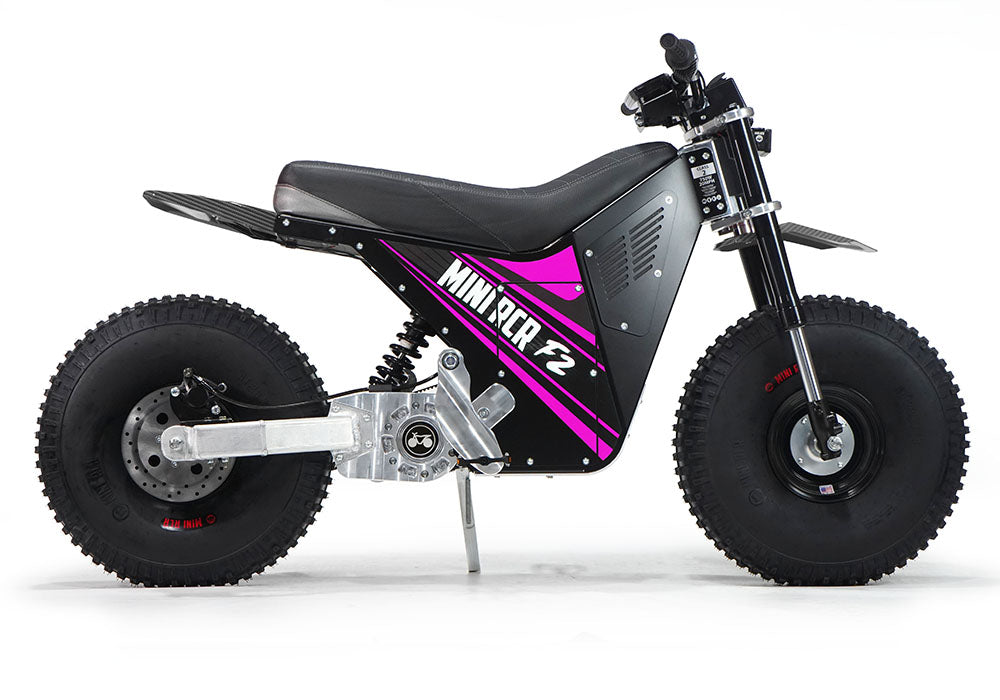

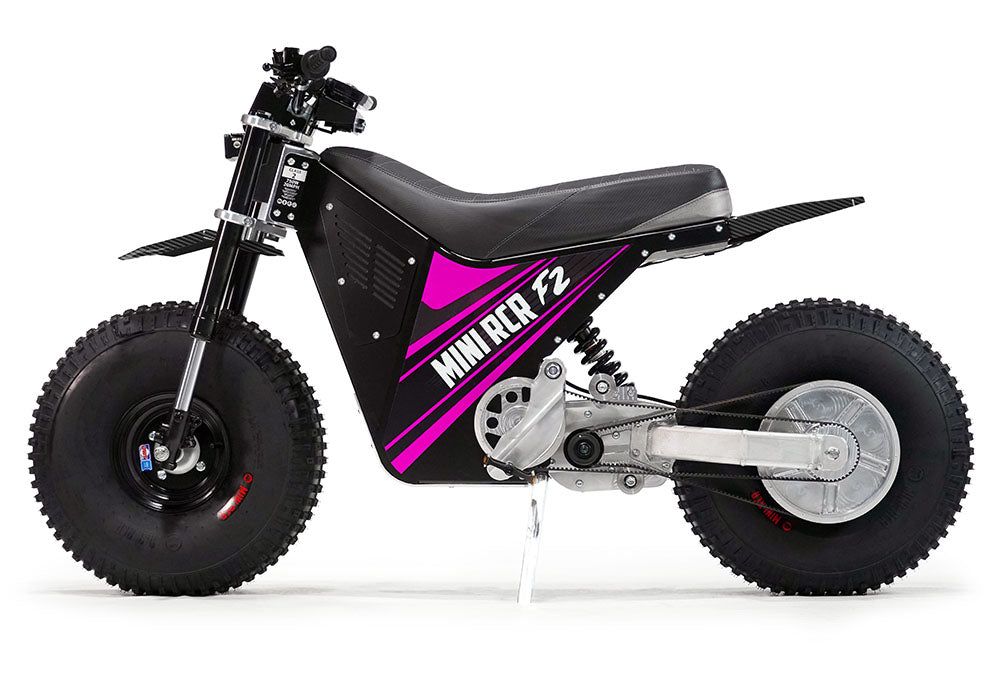

2026 MINI RCR F2
TECHNICAL SPECIFICATIONS
Core dimensions, electrical system, chassis, and performance specifications.- Battery
- 72V 36Ah · 2,592Wh
- Motor
- 750W · Governed to 20 mph for Class 2 compliance
- Power
- 3,800–6,000 RPM · 94% efficiency · Governed for Class 2 compliance
- Torque
- 45–55 Nm (20–30 HP) · Governed for Class 2 compliance
- Brakes
- Lightweight 2-piston hydraulic · Cross-drilled rotor
- Tires
- Front: all-terrain 23 × 7–8
Rear: all-terrain 23 × 7–8 - Suspension
- Front: 28-inch spring forks
Rear: 13-inch adjustable coilover with shaft bump stop
- Charge time
- 5 hours with 10A charger
- Frame
- Steel and billet frame
- Wheelbase
- 49-inch length · 32-inch width
- Clearance
- 9-inch frame · 5.5-inch rear guard
- Seat height
- 31.5 inches
- Weight
- Approximately 225 lb
- Wheels
- Front: 4 × 8 inches
Rear: 4 × 8 inches
Specifications are subject to change as the design is improved. Some variation may occur from model to model. Contact Mini RCR to confirm specifications for your build.
KNOW BEFORE YOU GO
BEFORE YOU RIDE
WHO IS THE F2 FOR?
The F2 is intended for adults age 18 and older, with a maximum rider weight of 250 lb.
WHAT SHOULD I CHECK BEFORE RIDING?
Wear appropriate protective equipment and confirm the local rules for Class 2 e-bikes before riding.
HOW LONG WILL MY ORDER TAKE?
Current estimated production lead time is approximately 15 days before shipment or pickup.
OWNER RESOURCES
F2 INSTRUCTION MANUAL
Operating, safety, charging, and maintenance information for your Mini RCR F2.PROTECTED INNOVATION
UNITED STATES PATENTS
Mini RCR United States patent references.ENGINEERED DIFFERENTLY
