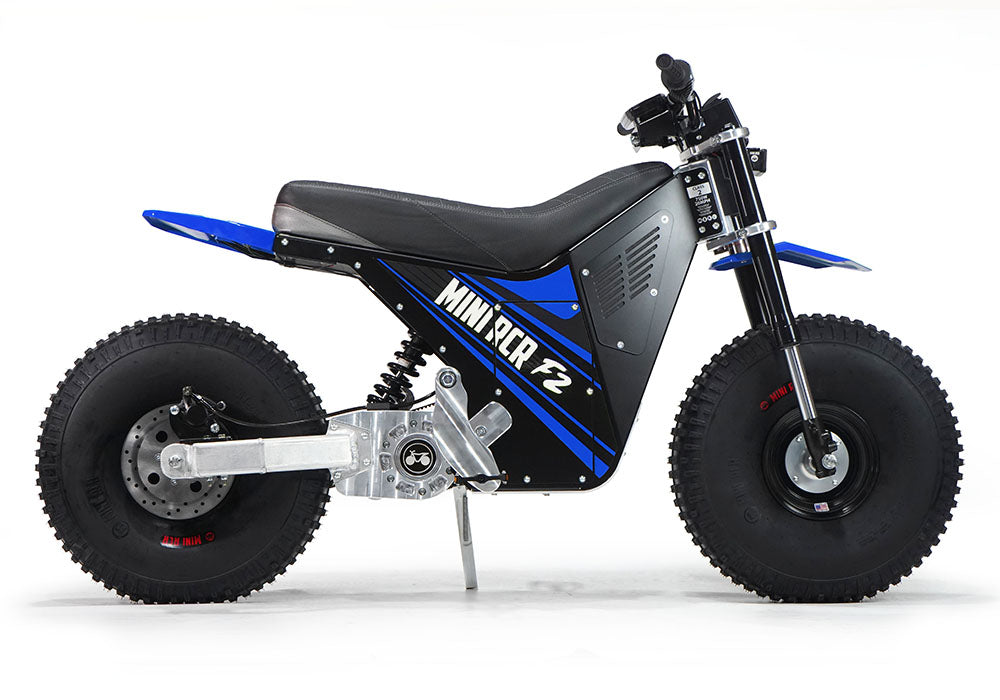

2026 MINI RCR F2
TECHNICAL SPECIFICATIONS
Core dimensions, electrical system, chassis, and performance specifications.- Battery
- 72V 36Ah · 2,592Wh

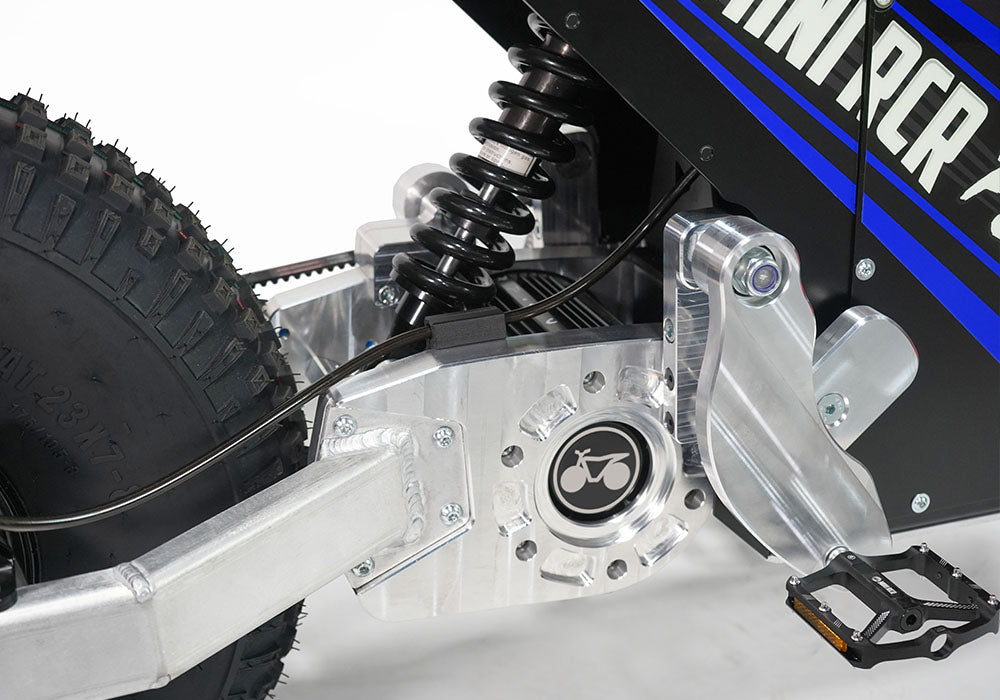

- Motor

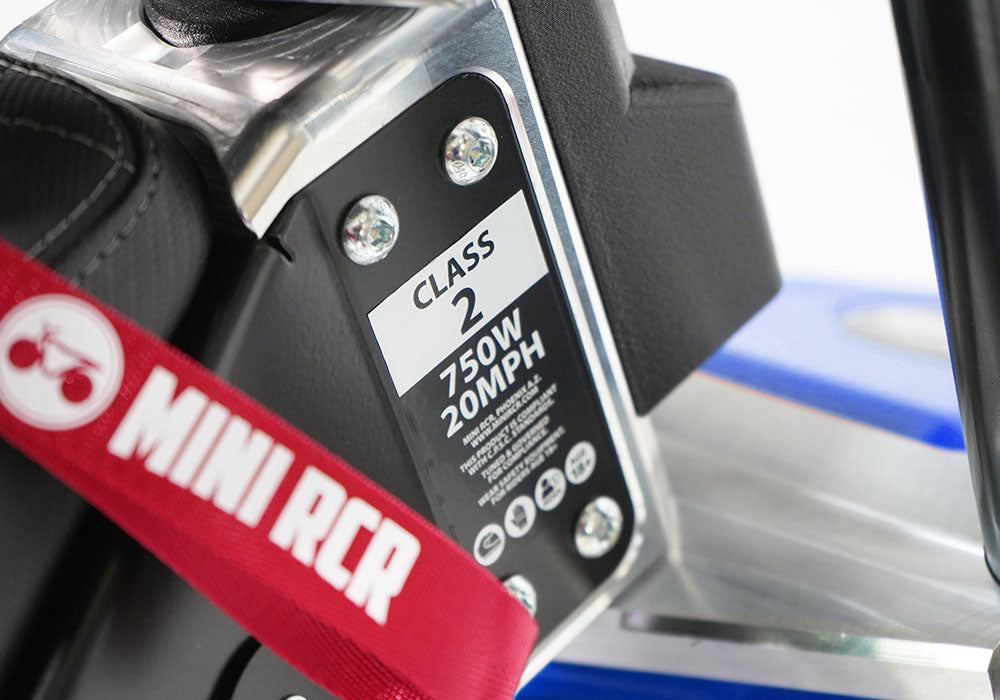

- 750W · Governed to 20 mph for Class 2 compliance
- Power
- 3,800–6,000 RPM · 94% efficiency · Governed for Class 2 compliance
- Torque
- 45–55 Nm (20–30 HP) · Governed for Class 2 compliance
- Brakes
- Lightweight 2-piston hydraulic · Cross-drilled rotor
- Tires
- Front: all-terrain 23 × 7–8
Rear: all-terrain 23 × 7–8 - Suspension
- Front: 28-inch spring forks
Rear: 13-inch adjustable coilover with shaft bump stop
- Charge time
- 5 hours with 10A charger
- Frame
- Steel and billet frame
- Wheelbase
- 49-inch length · 32-inch width
- Clearance
- 9-inch frame · 5.5-inch rear guard

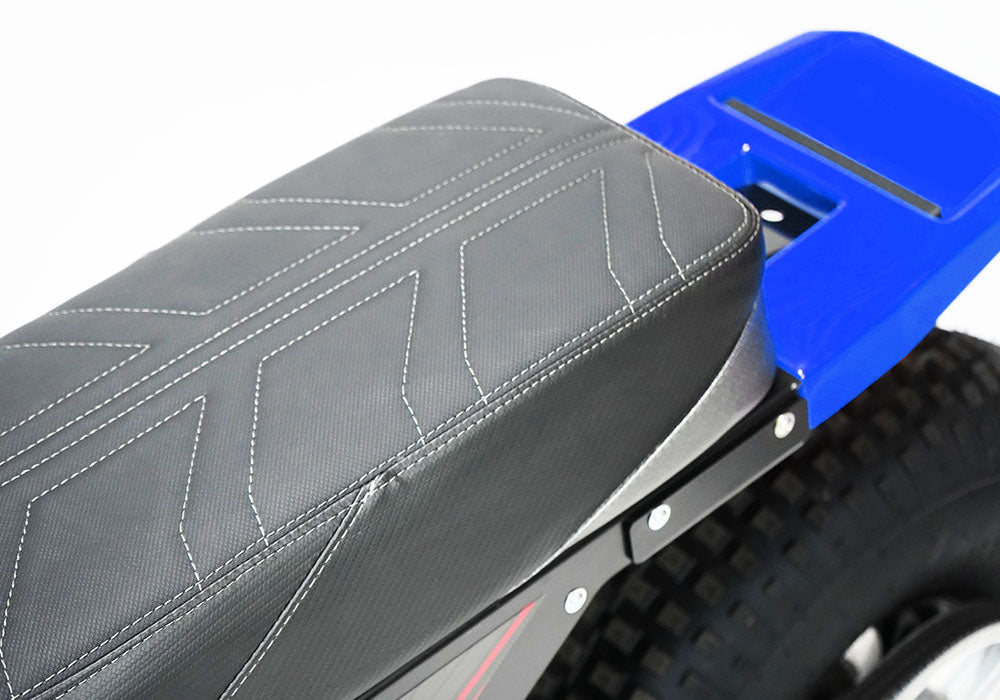

- Seat height
- 31.5 inches
- Weight
- Approximately 225 lb
- Wheels
- Front: 4 × 8 inches
Rear: 4 × 8 inches
Specifications are subject to change as the design is improved. Some variation may occur from model to model. Contact Mini RCR to confirm specifications for your build.
